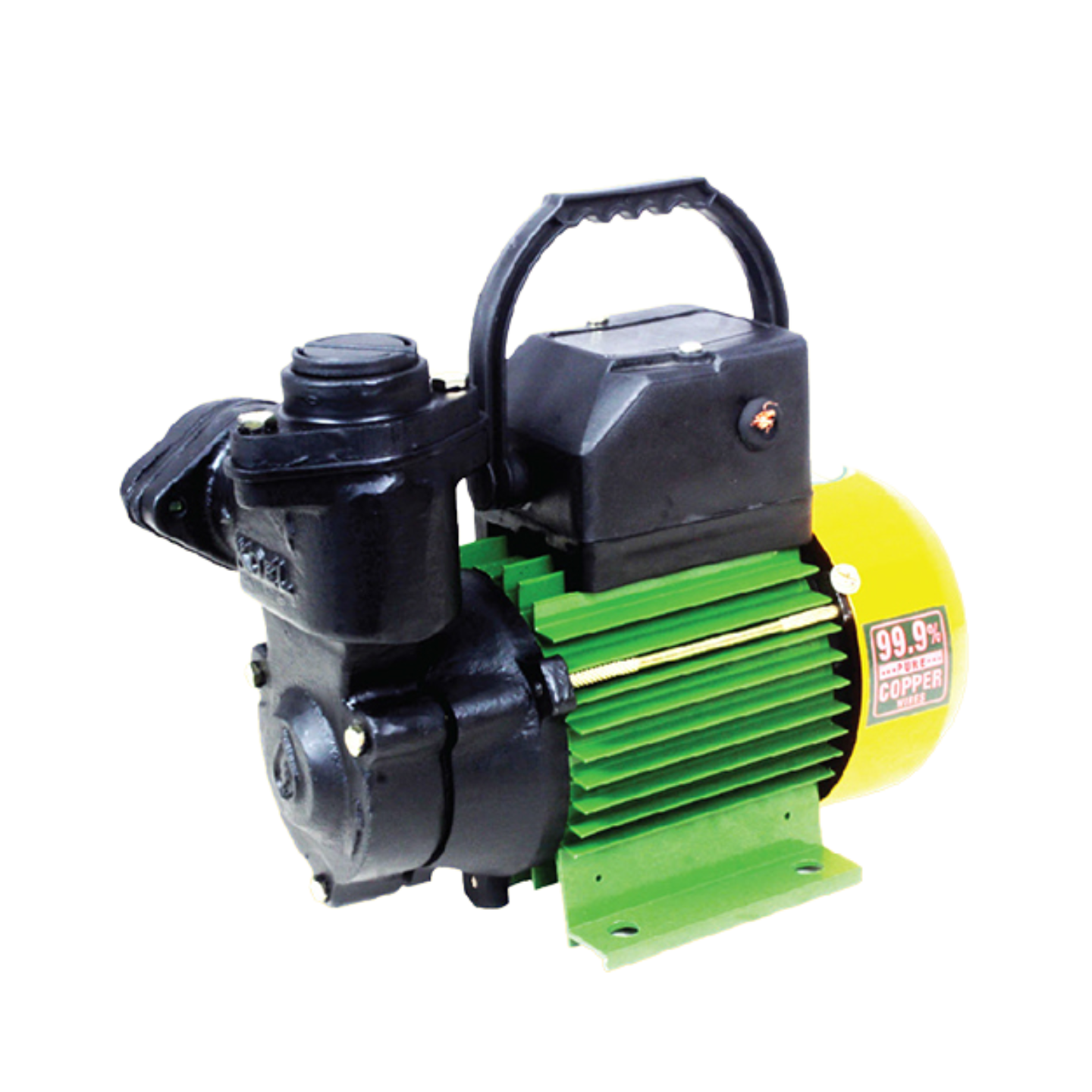

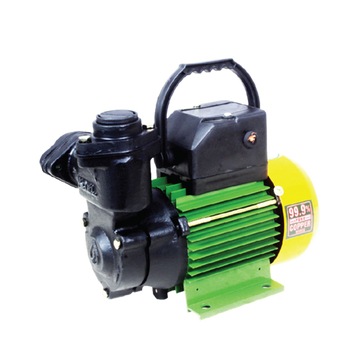

Mini Monoblock Pump

The Mini Monoblock Pump is a high-performance domestic water pump designed for bungalows, gardening, and building applications. With a power range of 0.5HP to 1.5HP, it ensures efficient water flow at a speed of 2880 RPM. Built with high-quality materials and advanced motor protection, it offers long-lasting durability and superior performance.

Specifications:

• Power Range: 0.5HP – 1.5HP
• Speed: 2880 RPM
• Voltage Range: 160-240V, 50 Hz, 1 Phase
• Application: Domestic use, gardening, and buildings

Salient Features:

• High-quality bearing – Ensures smooth operation and longevity.
• Insulation Class ‘P’ – Provides superior motor insulation.
• Motor Protection by TOP – Prevents overheating and damage.
• Strong CL body – Ensures robust construction.
• Degree of Protection IP44 – Safeguards against dust and water splashes.
• CED-coated CL parts – Enhances corrosion resistance.

Material of Construction (MOC):

• Winding: Copper Wire
• Body: EC Aluminium
• Impeller: Noryl / High Tensile Brass (HTB)
• Shaft: EN 8 / SS410
• Casing & Adopter: FG 200

Widely use in Agricrops likes all crops vegetable, flower garden, Tea pulses, oilseeds, Rubber, fruits, Banana, papaya, cotton, Mustard, Chill, Cumin, Suger Cane, Paddy, Wheat, Potato, Onion & other all Crops.
